A quantum leap in terms of speed
The DosP DP2001 piston dispenser provides a solution for the industry requirements of Automotive Electronics, Industrial Electronics, Medical Electronics and Consumer Electronics for the shortest cycle times and highest dispensing qualities.
It also covers a wide range of materials: In addition to highly liquid adhesives, sealants and castings, piston dispensers are also suitable for highly viscous and/or filled materials. The new #Advanced Dispensing enables dispensing speeds of up to 10 times higher – even for highly viscous materials.
Your benefits
- Up to 10 times higher dispensing speeds
- Shortest cycle times
- Accurate start-stop behaviour
- High-precision contours Comprehensive process monitoring options
Pionieering Dispensing Solution

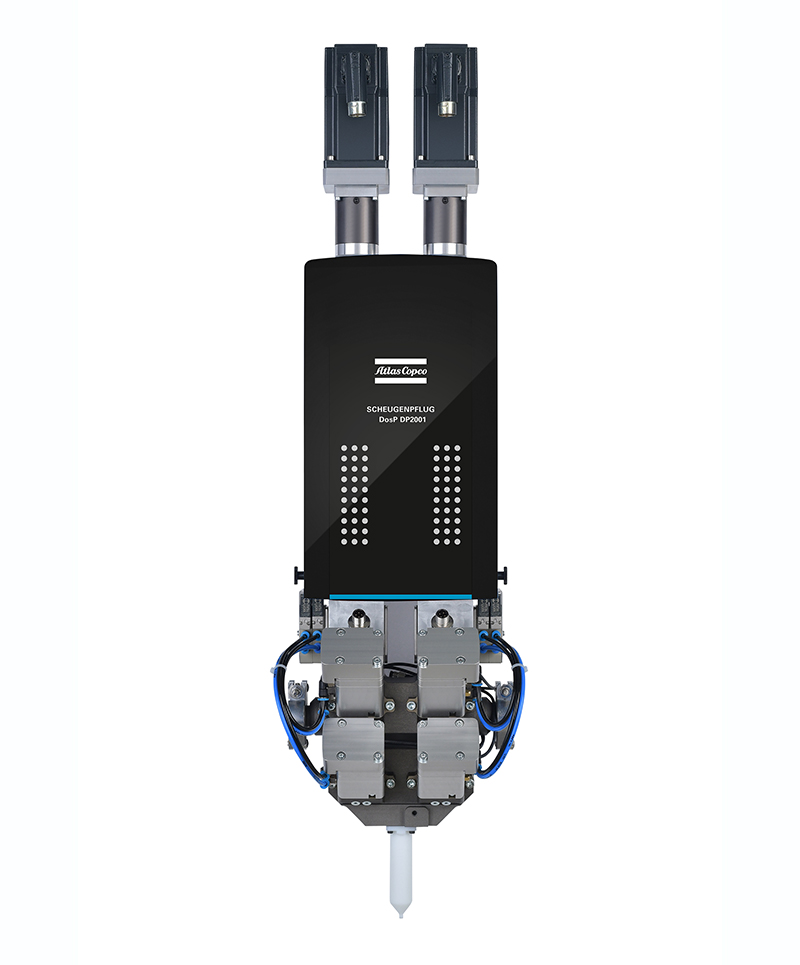

The DosP DP2001 dispenses 1C materials from 0.06 ml to 20 ml and 2C materials from 0.1 to 40 ml. Highest dispensing speeds and the resulting suitability for highly automated production lines are made possible by various detailed solutions: The new valve system, for example, is characterized by high reliability – even at highest dispensing speeds – and allows shortest valve switching times. It works membrane-free and is particularly pressure-resistant.
Powerful servo drives ensure optimized power transmission and higher discharge speeds and are the basis for the performance leap. Thanks to the individual drive for each component, they can be optimally matched to each other and the mixing ratios can be adapted to the production-specific characteristics – such as the hardening behaviour. Pressure monitoring, valve status control and software functions further contribute to the individual performance of the system.
High performance for series production
Material usually has to be dispensed as quickly as possible. This is a task that the DosP DP2001 high-performance dispenser performs up to ten times faster than comparable solutions on the market.
up to 10 times higher dispensing speeds
Motor
- Powerful servo technology
- Individual drive per component
- Adjustable mixing ratios
Lifting Unit
- Increased stiffness and direct force transmission
- Modular Design for 1C & 2C
- Preload / Unload possibility
- Guided refill & Depressurization
Dispensing head
- Size 20ml
- Dispensing volume: 0.06 to 20 ml / 1C 0.1 to 40 ml / 2C
- High volume production
- Shortest cycle times
- Even highly viscous media
Process Control System
- Dispensing pressure monitoring and control system
- Valve status control (Open/Close)
Valves
- Durable at high dispensing pressures
- Short valve switching time
Optional: Advanced Mixing Tubes
Precise & homogenous mixing
Product data
| 1C | 2C | |
|---|---|---|
| Volume/shot at 1:1 min./max. [ml] | 0.06 | 0.1 |
| Dispensing speed max.1 [ml/s] | 20 | 40 |
| Outlets | 1 | 1 |
| Dimensions (W x D x H) [mm] | 205 x 165 x 705 | 375 x 165 x 705 |
| Weight [kg] | 10 | 19.5 |
1 application-dependent
